Exhaust air hood Evac-F

Professional kitchen hood for equipment thatgenerates grease, such as griddles, deep fryers and ranges.

  • Parts delivered separately for assembly at the workplace
  • Wire mesh filter or efficient Cyklotec cyclone filter
  • Recessed LED lighting in protection class IP 65
  • Accessories: UV light purification

Function

The hood draws up contaminated air, filters it and then discharges the filtered air via the exhaust air duct. Evac-F can also be delivered without filter for installation above e.g. a dishwasher.

Design

The hood is made of brushed stainless steel sheet metalor laminated glass (3+3 mm). The hood’s dimensions are fully customisable based on your needs and preferences, and the parts are delivered unassembled for cost-effective transport and easy assembly at the workplace.

External lightning

The external lighting fixture is approved to protection class IP 65, which means that it is dust-tight and can be exposed to water. The fixture is equipped with energy-saving LED lighting with DALI control (14, 28 and 49 W). The colour temperature of the fluorescent tube is 3000 K, warm-white. The length of the fixture is approximately 700 mm (14 W), 1300 mm (28 W) or 1600mm (49 W).

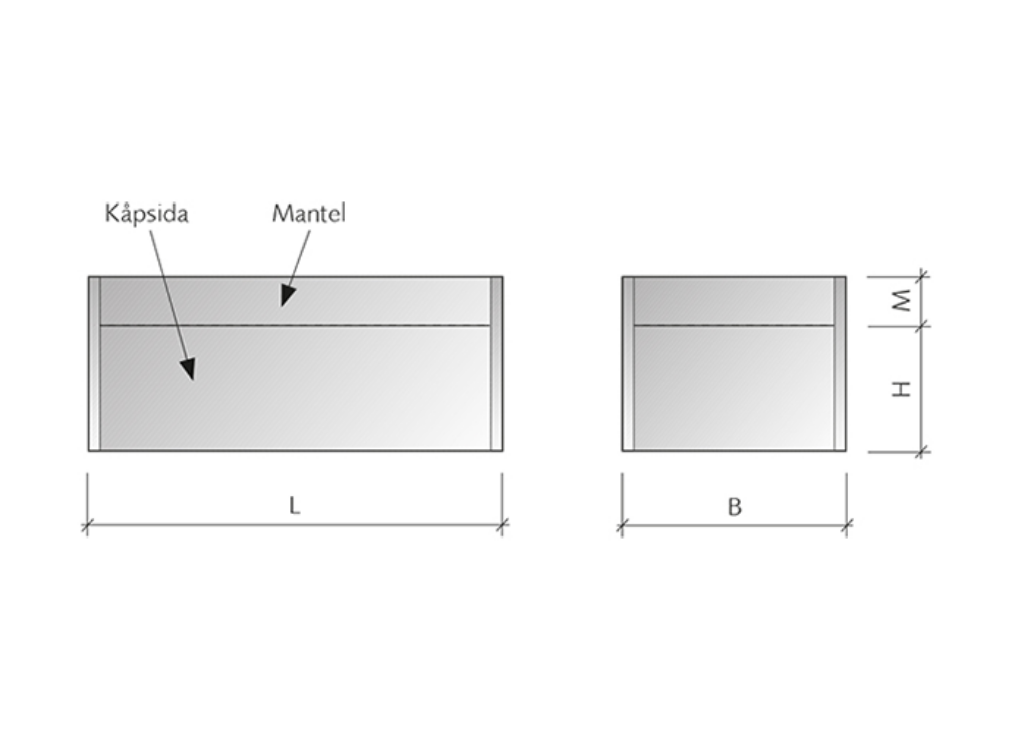

Height, length and depth may be freely selected.

Specifications

Exhaust air hood Evac-F-R-E-2H-2000x1000x500-250

Example description text

Exhaust air hood Evac-F, manufactured by Acticon, withfour sides in stainless steel sheet metal. Sealed sub-top in anodised aluminium. The hood is equipped with LED lighting in protection class IP 65 and FHC filter housing with wire mesh filter.
