FHV and FHC filter housings

Filter unit with wire mesh filter or flame-retardant filter.

  • Often used in the professional kitchen hoods delivered unassembled
  • Can be ordered separately for installation in custom-built hoods
  • Available in twelve sizes with models for ceiling or wall mounting

Design

The filter housings are made of brushed stainless steel sheet and supplied with a counter flange for easy duct mounting. They are equipped with dampers and pressure taps for air flow adjustment.

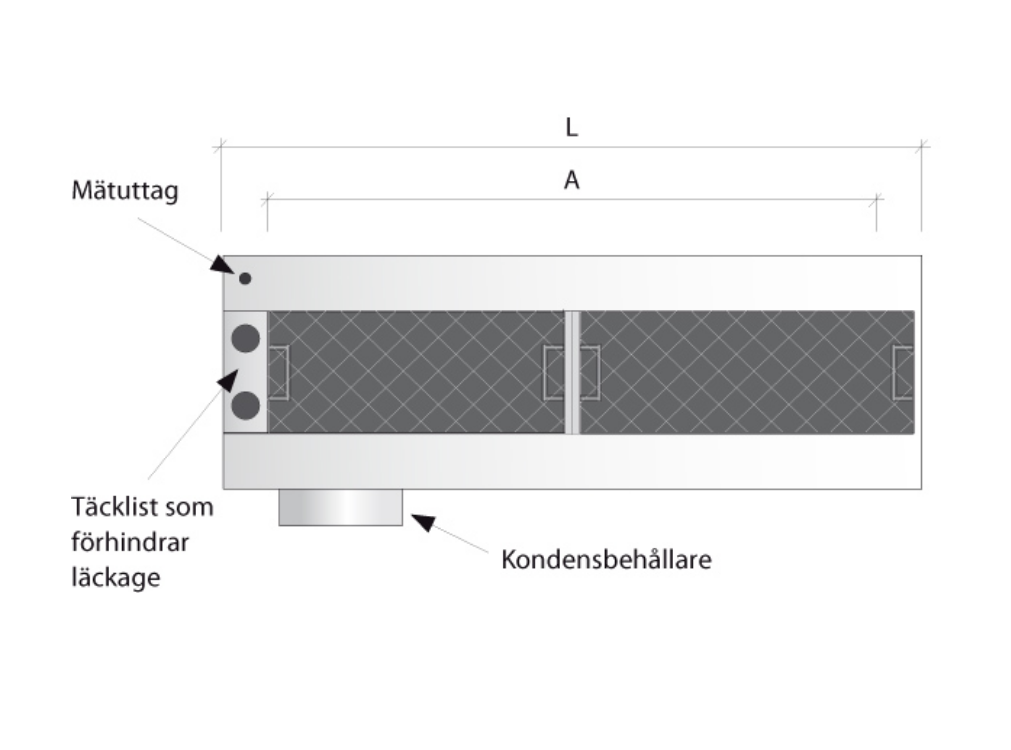

The filter housing is equipped with a practical cover strip that ensures the filter closes tightly against the housing and prevents contaminated air from leaking. Grease and condensation are collected in a condensation container. Containers and filters are easily removed for cleaning in a dishwasher.

Different filters

The filters are available in sizes 500 x 250 and 500 x 500 mm. All filters have protective grilles and fold flat handles for easy handling during cleaning.

Wire mesh filter: The filter consists of an aluminium frame filled with knitted galvanised wire mesh that efficiently removes grease and condensation from the ventilation air. Type A is 50 mm and B is 25 mm thick.

Flame-retardant filter F: The filter’s lamellar prevent the spread of fire. It is made up of a frame and lamellar made of stainless steel sheet and a knitted layer of stainless steel mesh. The filter is 35 mm thick.

All filters have fold flat handles for convenient handling.

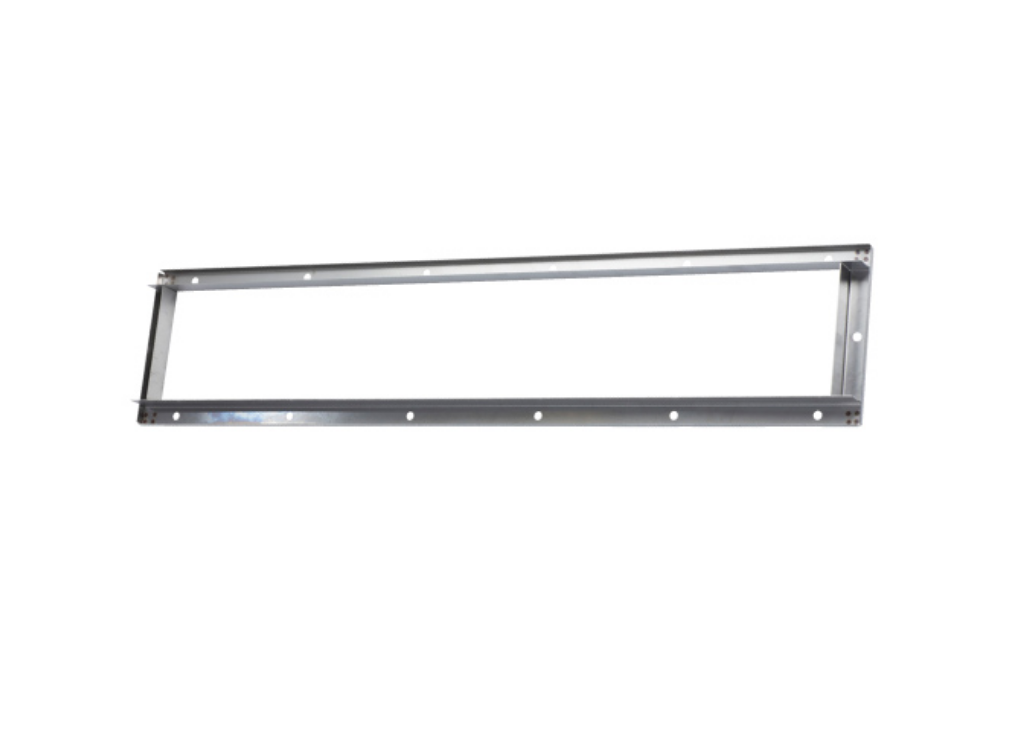

The counter flange is mounted on the exhaust duct and fitted to the filter housing.

Models

Filter housing FHV: Mounted on wall or side of hood
Filter housing FHC: Mounted centrally at top of hood

Dimensions

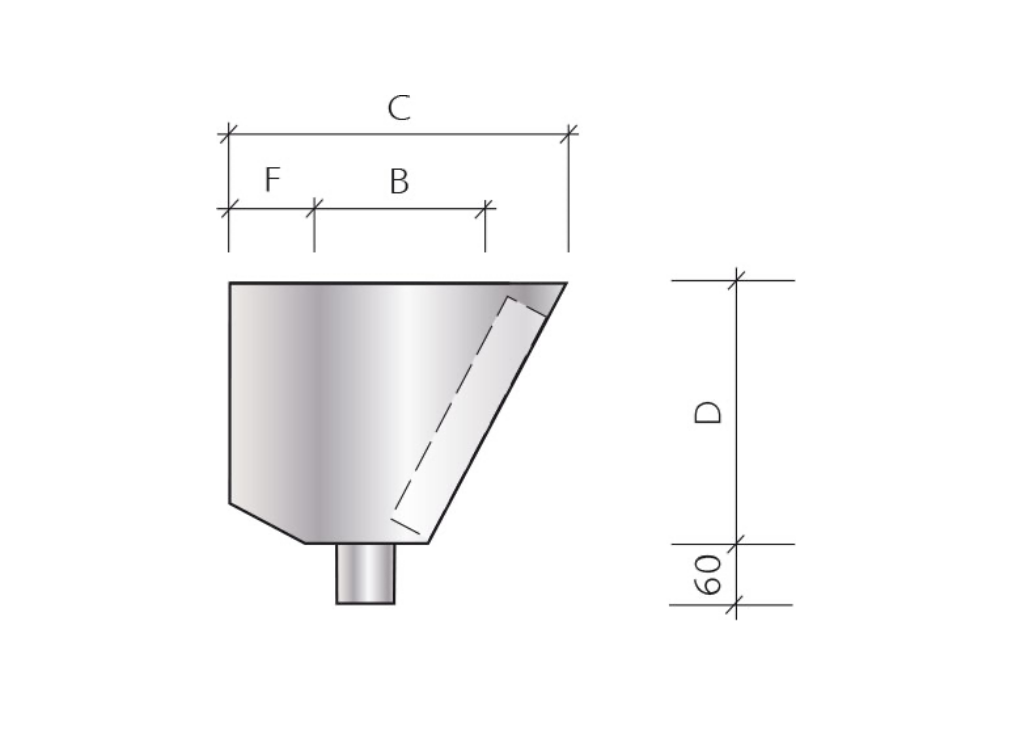

Filter housing dimensions are shown in the figures and tables below. For easy mounting of the counter flange and filter housing, the external dimensions of the connecting duct must be A x B. As an alternative to the rectangular connection, the filter housing can be supplied with a circular sleeve.

Filter housing FHV Mounted on wall or side of hood

Filter housing FHC Mounted centrally at top of hood

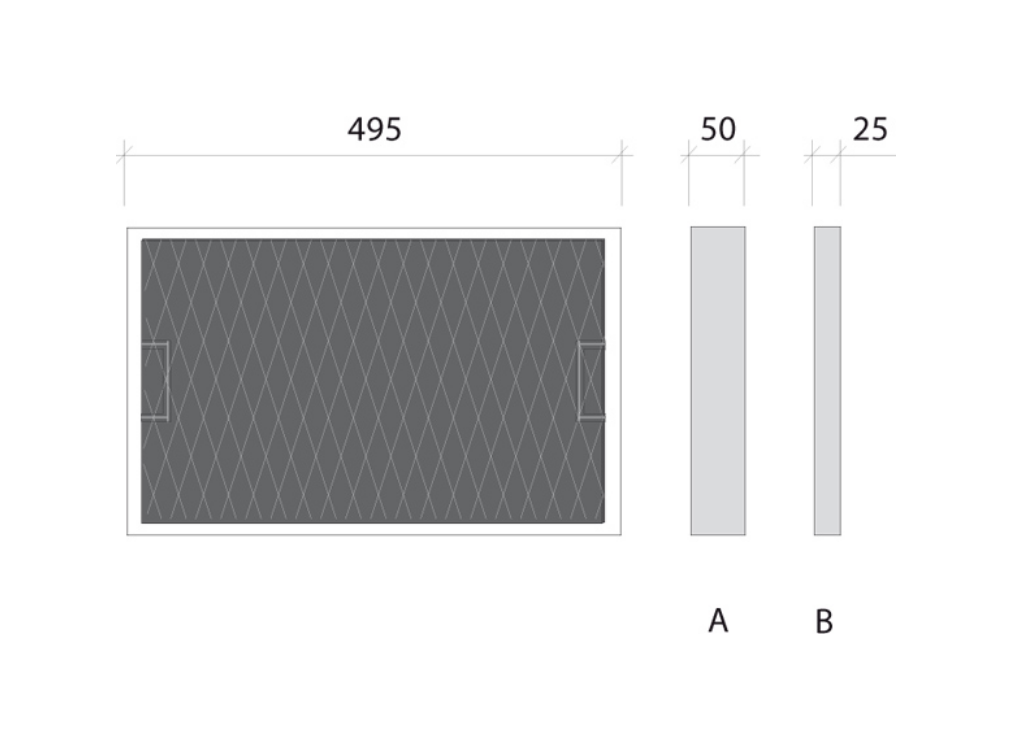

Wire mesh filters are available in two sizes. A is 50 mm and B is 25 mm thick.

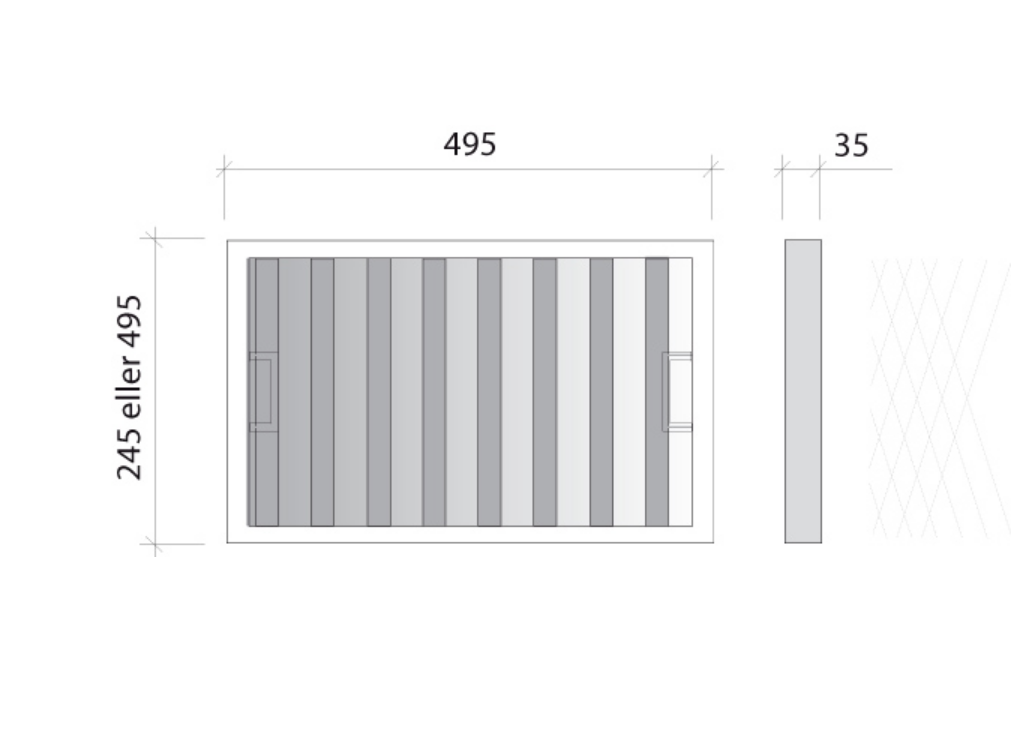

Flame-retardant filter F is available in two sizes with a thickness of 35 mm.

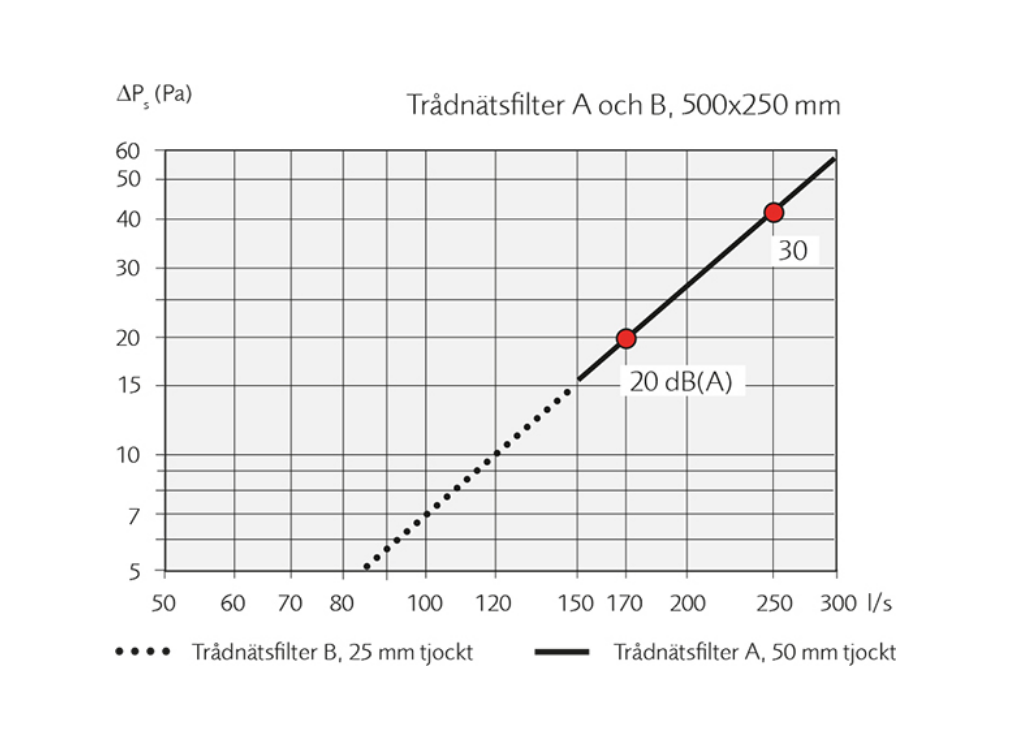

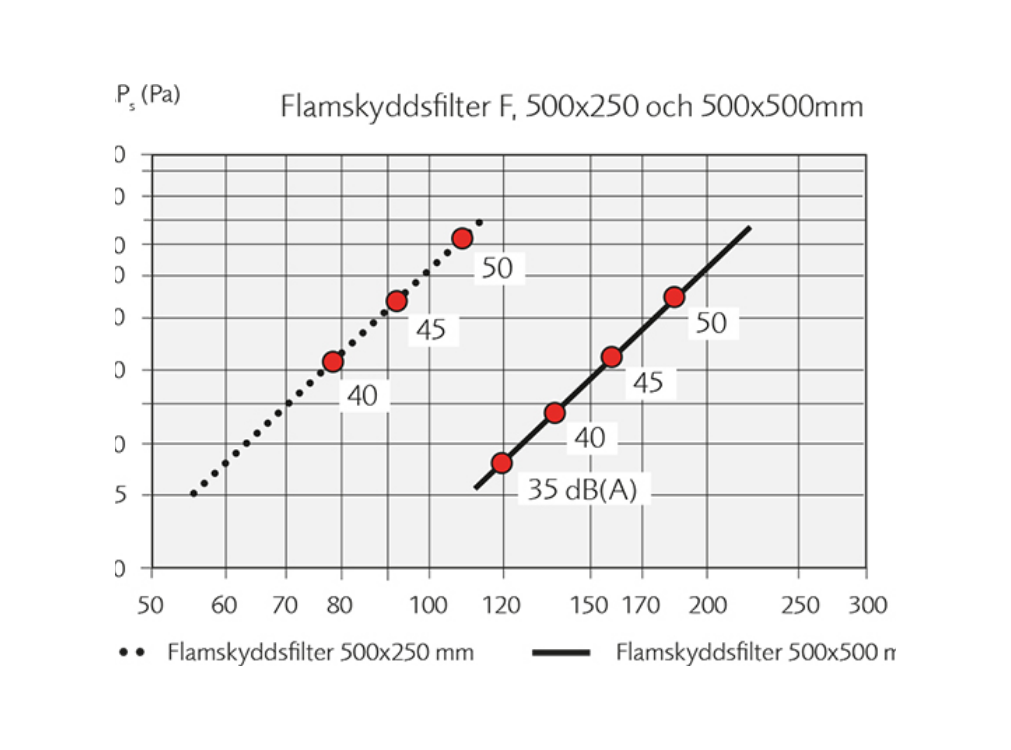

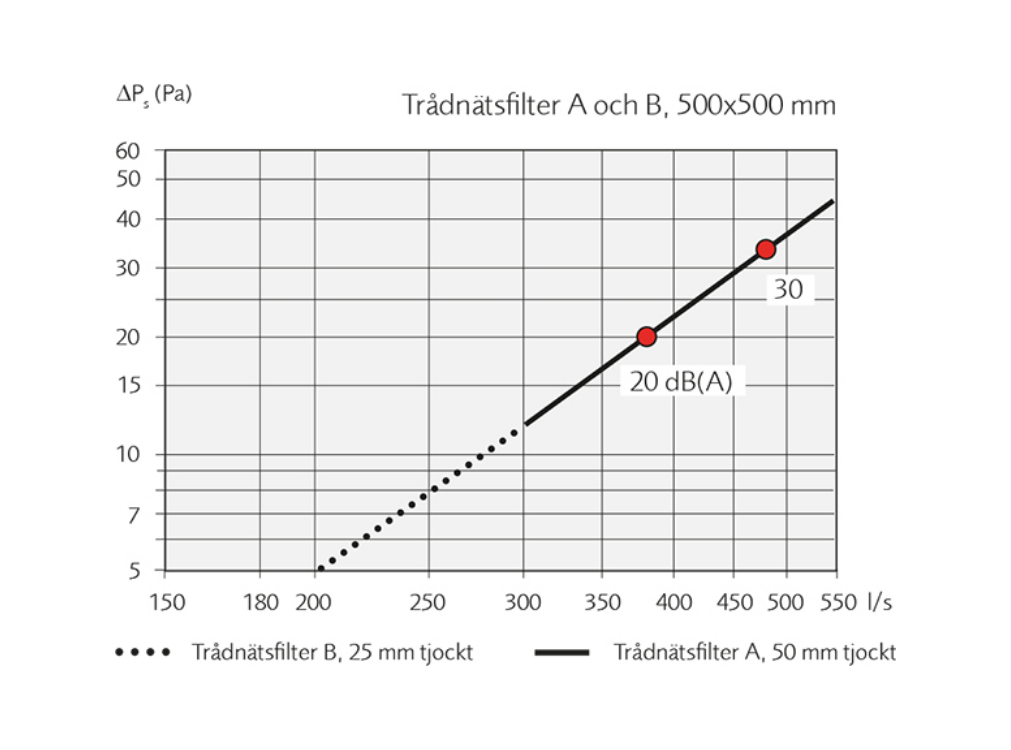

Air flow - Pressure drop - Noise level

Reported dB(A) values are for 10 m2 Sabine, which corresponds to a room attenuation of 4 dB.

Filter size 500x250mm

Designation + number of filters in line A mm B mm C mm L mm
FHV-5025-1 400 150 300 550
FHV-5025-2 900 150 300 1050
FHV-5025-3 1400 150 300 1550
FHC-5025-1 400 250 400 550
FHC-5025-2 900 250 400 1050
FHC-5025-3 1400 250 400 1550
D=330 mm, F=75 mm

Filter size 500x500mm

Designation + number of filters in line A mm B mm C mm L mm F mm
FHV-5050-1 400 250 400 550 75
FHV-5050-2 900 250 400 1050 75
FHV-5050-3 1400 250 400 1550 75
FHC-5050-1 400 500 630 550 65
FHC-5050-2 900 500 630 1050 65
FHC-5050-3 1400 500 630 1550 65

Air flow

The table shows recommended air flows across a filter cell.

Exhaust air l/s Filter Size mm
150 - 250 A 500x250
300 - 500 A 500x500
75 - 150 B 500x250
150 - 300 B 500x500
60 - 80 F 500x250
110 - 140 F 500x500
Example: One FHV-5025-3-A filter housing contains three 500 x 250 mm A wire mesh filters. Recommended maximum exhaust air flow through the filter housing will then be 3 x 250 = 750 l/s

Specifications

Filter housing FHV – 5025 – 2 – A.

Description text suggestion

Wall-mounted FHV filter housing manufactured by Acticon with wire mesh filter.
Model = FHV or FHC FHV
Size = 5025 or 5050 5025
Number of filters in line = 1, 2, 3 2
Filter = A, B or F A
