Volume hood ROT

  • The volume hood for renovation projects is easily installed in older buildings and acts as a thermal flow amplifier
  • With a large front hood, maximum odour capture is achieved even at low air flows. Less warm air from room is removed - energy saving!
  • Large attachable and detachable front hood
  • Full-width LED lighting inside the hood
  • Electrical connection with plug-in transformer
  • Easy cleaning - smooth white lacquered surfaces
  • Also suitable for gas cookers
  • Does not pressurise the exhaust air duct - avoiding risk of transferring odours to neighbouring premises

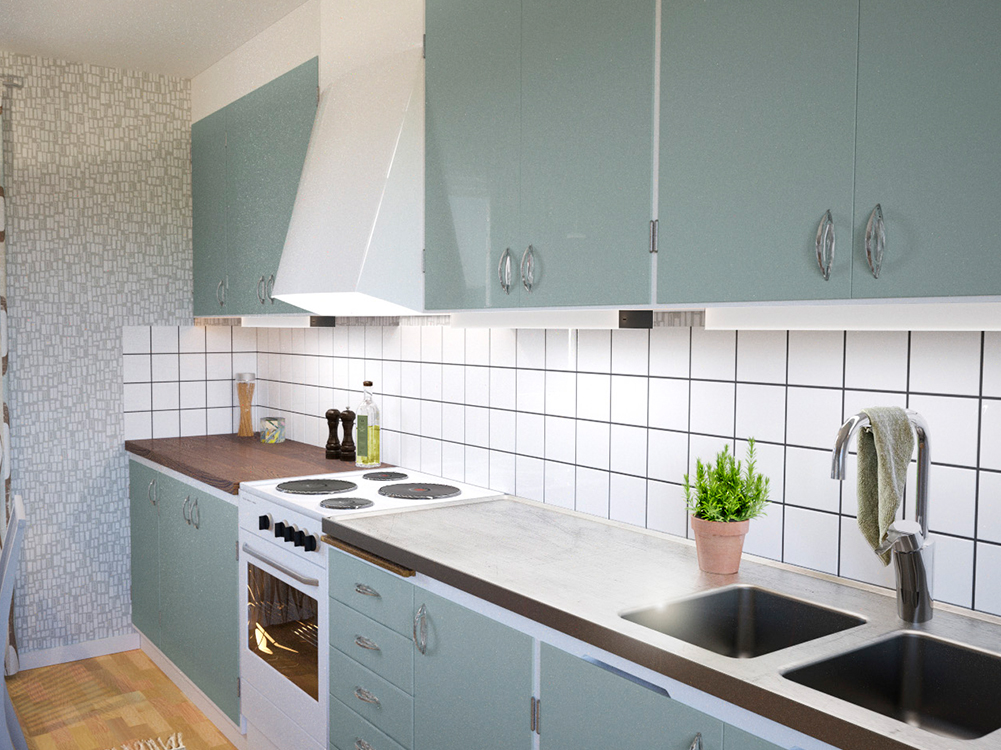

A built-in volume hood that is easy to install above the cooker over an existing vent. Inside the volume hood above the grease filter, the vent on the kitchen wall is opened up.

When installing a renovation project volume hood, the existing vent above the cooker is enclosed and odour capture is increased.

The volume hood becomes a thermal flow amplifier and odours are removed without a noisy fan!

The volume hood goes all the way up to the ceiling and works with all types of ventilation.

Dimensions

For ceiling heights of 2.5 m or higher

B 500 x D 300 x H 1,050 mm
B 600 x D 300 x H 1,050 mm
B 700 x D 300 x H 1,050 mm

For ceiling heights of 2.4 m or higher

B 500 x D 300 x H 950 mm
B 600 x D 300 x H 950 mm
B 700 x D 300 x H 950 mm

A front hood height of 850 mm applies to all of these.

Material

The wall-mounted part is made of white powder-coated galvanised sheet steel, RAL 9016, 90% gloss.

Grease filters

Large efficient grease filter. Dishwasher safe. Inserted diagonally in the upper part of the cabinet.

Lighting

LED lighting along the entire width of the volume hood. Built-in power switch. Connection to wall-mounted power outlet with plug-in transformer.

Vent

There is no vent or sleeve for a duct connection, but the existing working vent above the cooker can continue to be used.

Wall socket

The appropriate location of the wall socket is in or above the nearest wall cabinet. Connection to power outlet with plug-in transformer.
