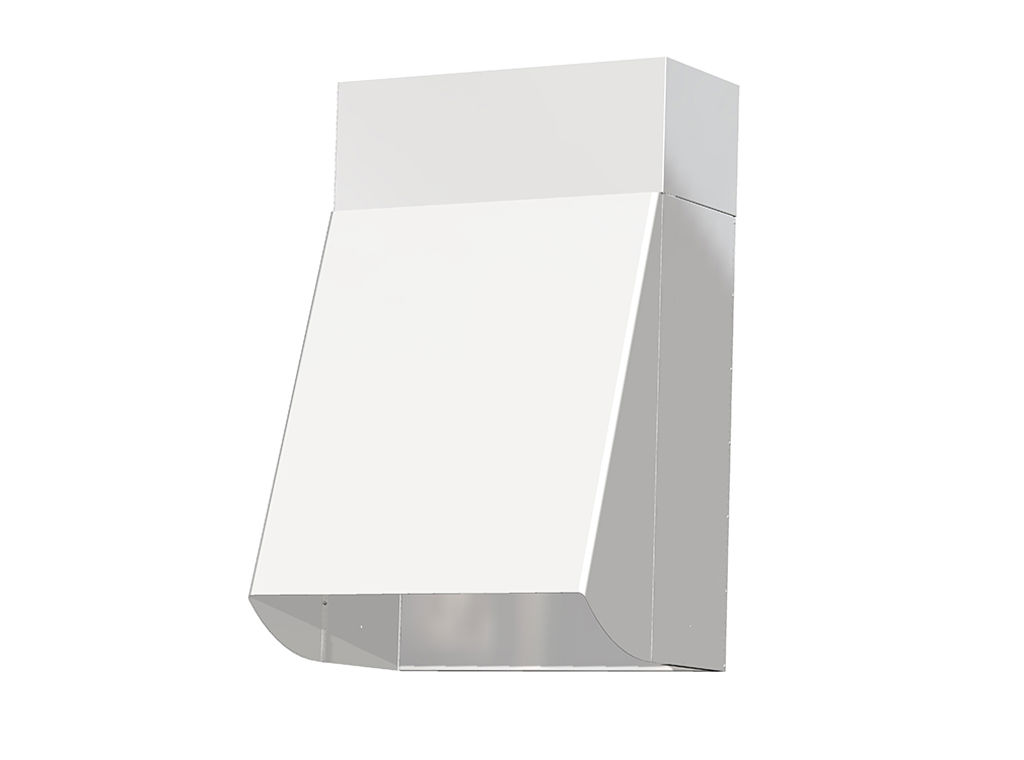

Universal volume hood
Quiet and energy-efficient odour capture
- Large volume and energy-efficient odour capture Efficient odour capture even at low flows
- No fan - silent Easily connects to existing ventilation system
- Easily installed in renovation and new construction projects Fitted only with control vent
- Suits most ventilation systems (S, F, FX, FT, and FTX systems)
- Removable front hood for service and easy cleaning
- Covers the entire cabinet height
- Requires no top cabinet
- No moving parts
A New Generation of Well-Designed Cooker Hoods
The Universal volume hood is a low-flow, high-volume hood. It consists of a wall-mounted section and a removable front hood, which simplifies installation and adjustment. Supplied with a control vent only. Suitable for installation between two wall cabinets or as a suspended unit.
Duct connection is significantly easier to install.
Effective Odour Capture at Low Flows:
87.5% at 20.2 l/s
77.6% at 15 l/s
Dimensions
Manufactured to match cabinet frame dimensions. Standardised examples:
Vedum – 600 × 850 × 302 mm
Marbodal – 600 × 864 × 330 mm
Ballingslöv – 600 × 850 × 312 mm
Material
White powder-coated sheet metal, RAL 9016, 90% gloss.
Grease Filters
Large, efficient grease filter. Dishwasher safe. Inserted diagonally in the upper part of the cabinet.
Lighting
LED lighting runs along the entire width of the volume hood. Built-in power switch.
Connection to a wall-mounted power outlet via a plug-in transformer.
Vent
Control valve size: 125 mm standard.
Wall Socket
The wall socket should be positioned in or above the nearest wall cabinet.
Connection to the power outlet is via a plug-in transformer.
