Volume hood ROT

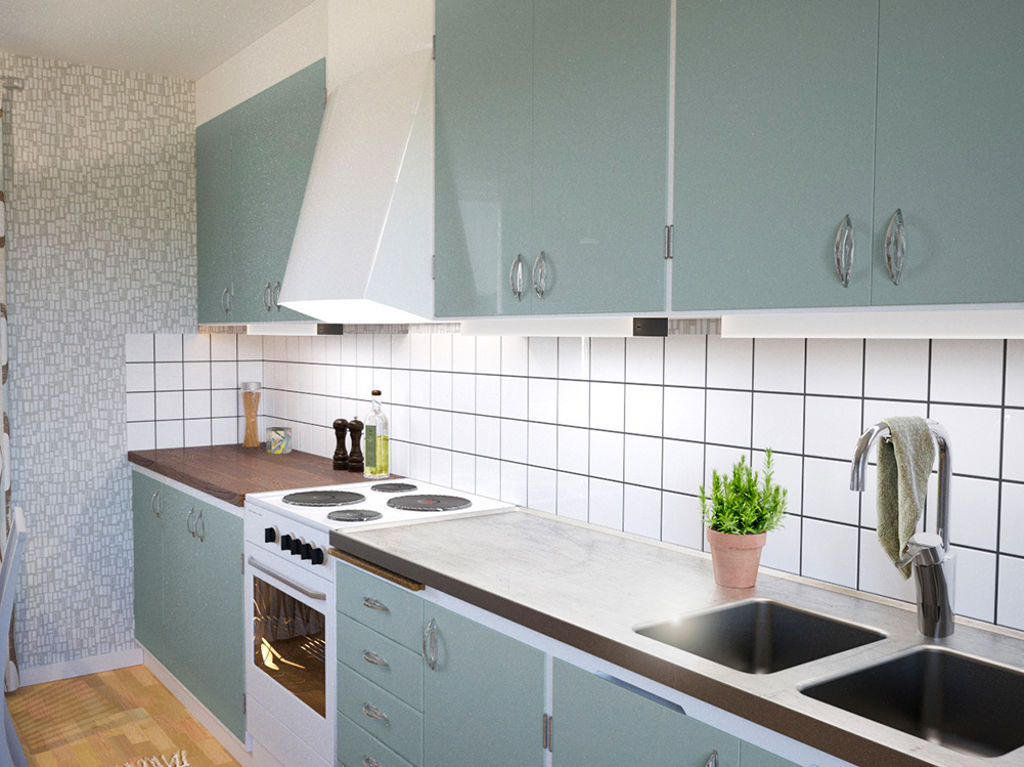

A built-in volume hood that is easy to install above the cooker over an existing vent. Inside the hood, above the grease filter, the vent on the kitchen wall is opened.

When installing a renovation project volume hood, the existing vent above the cooker is enclosed, increasing odour capture.

The volume hood acts as a thermal flow amplifier, removing odours without a noisy fan.

The hood extends all the way to the ceiling and is compatible with all types of ventilation.

Dimensions

For ceiling heights of 2.5 m or higher:

• B 500 × D 300 × H 1,050 mm

• B 600 × D 300 × H 1,050 mm

• B 700 × D 300 × H 1,050 mm

For ceiling heights of 2.4 m or higher:

• B 500 × D 300 × H 950 mm

• B 600 × D 300 × H 950 mm

• B 700 × D 300 × H 950 mm

A front hood height of 850 mm applies to all of these.

Material
The wall-mounted section is made of white powder-coated, galvanised sheet steel, RAL 9016, 90% gloss.

Grease Filters
Large, efficient grease filter. Dishwasher safe. Inserted diagonally in the upper part of the cabinet.

Lighting
LED lighting runs along the entire width of the volume hood. Built-in power switch. Connected to a wall-mounted power outlet via a plug-in transformer.

Vent
There is no vent or sleeve for a duct connection, but the existing vent above the cooker can continue to be used.

Wall Socket
The wall socket should be positioned in or above the nearest wall cabinet. Connection to the power outlet is via a plug-in transformer.
